PHYSIOIMPACT-Evident
With a wide range of indications in orthopaedics and rehabilitation with low application costs

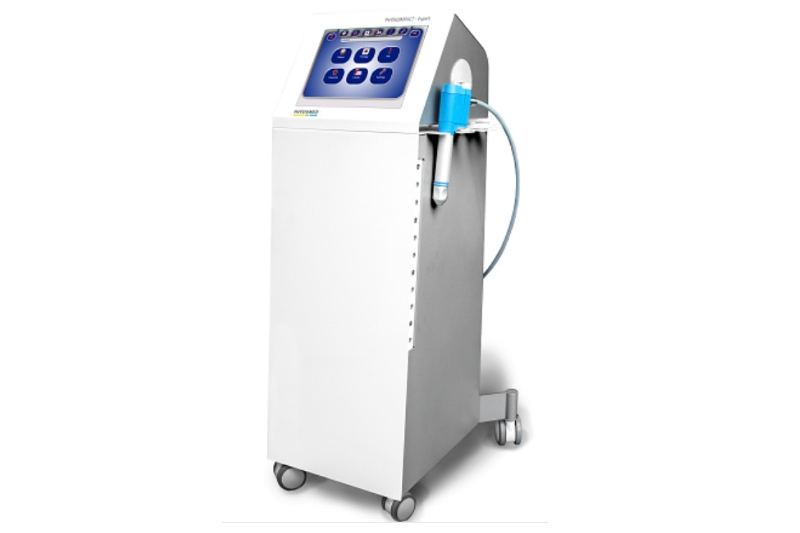

The high-energy PHYSIOIMPACT-Expert enables a targeted, gentle and effective extracorporeal shock wave therapy. In addition to accessing the indication and trigger point index or the patient database, all parameters can also be selected individually.
The intelligent coupling of shock wave intensity and treatment frequency in the alternating or stepped treatment is outstanding. During a treatment cycle, there is a continuous, controlled alternation of intensity and frequency, which makes cell-friendly treatment possible. The self-healing powers of the organism can already be stimulated during the treatment, which could be shown by tolerating higher energies.
The ergonomic handpiece with superior material properties can be used with four differently sized applicator attachments, which are specially tailored to the different indications.
SPECIAL FEATURES
SHOCKWAVE THERAPY
- Treatment with mechanical pressure pulses
- Operating modes: continuous, dynamic
- Pressure modulation and frequency modulation

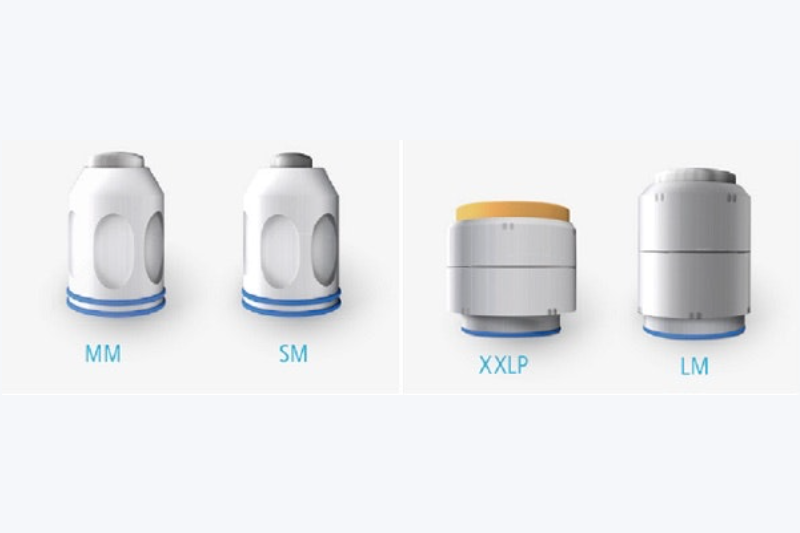

- 4 Different Applicators
- 1 Applicator XXLP, 36 mm, for cellulite, loose skin, stretch marks, for lymphatic drainage with high frequency and low pressure level
- 2 Applicator LM, 20 mm for deep skin injuries, cellulite, for training large muscle groups
- 3 Applicator MM, 14 mm for pain therapy, trigger point therapy, large calcium deposits, for training medium-sized muscles
- 4 Applicator SM, 12 mm for calcium deposits, pain therapy, trigger point therapy, for training medium-sized muscles
Ask us about PHYSIOIMPACT-Evident
GENERAL FEATURES
- Operation via high-resolution 12.1" color touch screen
- Compact design: small, handy device with case for the handpiece
- Particularly suitable for mobile use, e.g. B. Home visits
- Pulse counter for each handpiece and module
- User-oriented diagnostics
- Anatomical 3D application images
- Windows CE operating system with PC interface
- Easy and safe installation of the revision kitHigh treatment frequency
- Operating modes
- Patient database
- Therapy control
TECHNICAL DATA
- Protection class: 1, type BF
- Power connection: 108 V~ – 240 V~
- Mains frequency: 50/60 Hz
- Current consumption: 0.7 A
- Power consumption max: 200 VA
- Energy flow density max: 0.58 mJ/mm2
- Intensity levels: 25
- Impulse frequency: 1-12 Hz
- Dimensions (W x H x D): 245 x 450 x 350 mm
- Weight: 10.8 kg
STANDARD ACCESSORIES
- 1] Applicator XXLP, 36 mm
- [1] Applicator LM, 20 mm
- [1] Applicator MM, 14 mm
- [1] Applicator SM, 12 mm
