PHYSIOTHERM-M

High-standard microwave therapy

PHYSIOTHERM-M

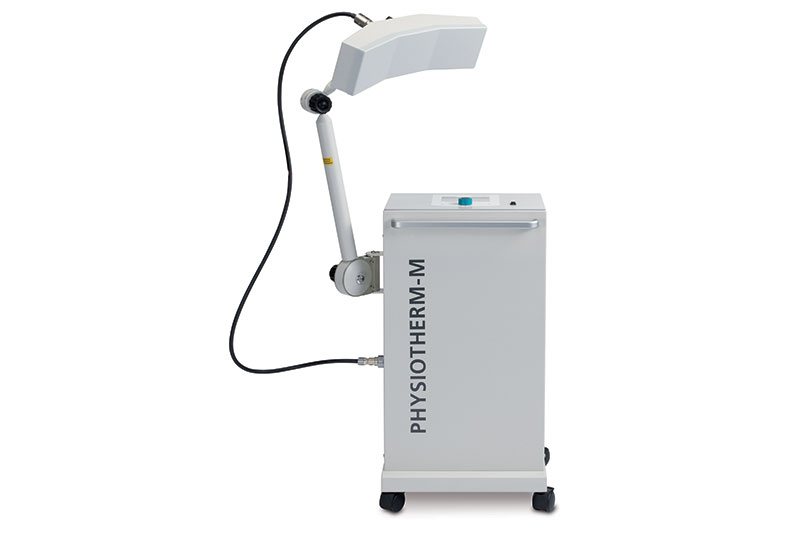

The modern PHYSIOTHERM-M microwave therapy unit enables continuous and pulsed energy output for thermal and athermal applications and features automatic output limitation. The extremely well-shielded, high-frequency connection cable provides troublefree operation. The smooth running castors with latches ensure good mobility and secure positioning of the PHYSIOTHERM-M. The easily adjustable supporting arms ensure quick and exact emitter placement. The high-quality and precisely manufactured connectors make it easy to change the emitter.

SPECIAL FEATURES

MICROWAVE THERAPY
  • Continuous or pulsed energy output
  • Automatic output limitation
ACCESSORIES

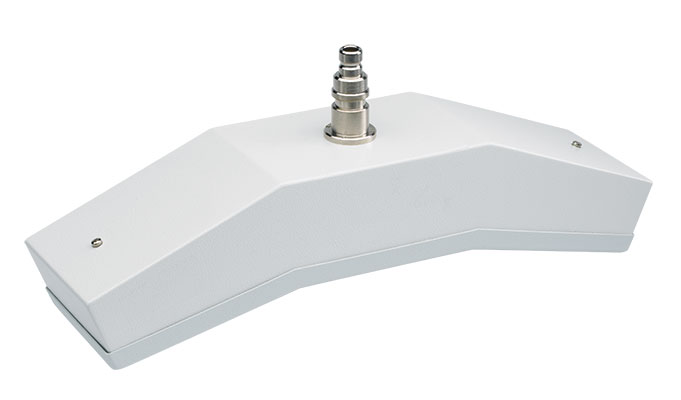

  • 1 Synclinal emitter for medium and large treatment areas (Standard)

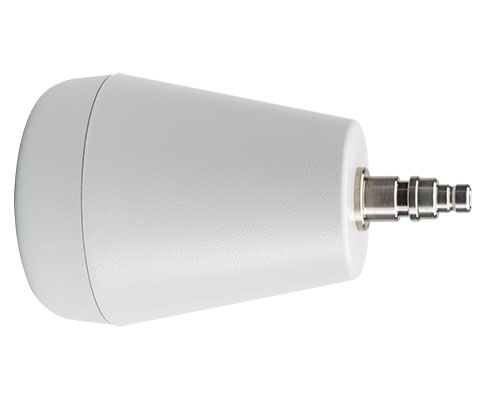

  • 2 Omnidirectional emitter (diameter: 16 cm) for local disease processes (Optional)

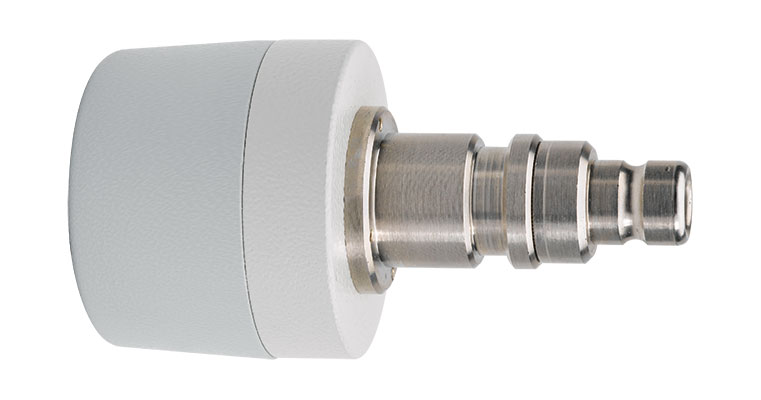

  • 3 Small emitter (diameter: 6.5 cm) for small areas and ENT applications (Optional)

Please share this content...

Ask us about PHYSIOTHERM-M

GENERAL FEATURES

  • Intuitive operation
  • Comprehensive overview of the therapy parameters
  • Fastest therapy start
  • 4 Knee treatment with omnidirectional emitter
  • 5 ENT application with a small emitter

TECHNICAL DATA
  • Protection class: 1, type B
  • Power connection: 230V ±10% or 115V ±10%
  • Mains frequency:50 – 60 Hz
  • Current consumption: 4 A (at 230 V) or 7 A (at 115 V)
  • Power consumption: 700 VA
  • Operating frequency: 2450 MHz
  • Power output max:
    Continuous operation (small emitter, automatic changeover): 25 W
    Continuous operation: 200 W
    Impulse mode: 1250 W
  • Impulse frequency: 1 – 50 Hz
  • Dimensions (W x H x D): 400 x 790 x 300 mm
  • Weight: 42 kg
STANDARD ACCESSORIES



  • [1] HF connection cable
  • [1] Mains cable
  • [1] Operating instructions
  • [1] Safety eyewear (microwave)
  • [1] Synclinal emitter
