MAG-Expert

Two-channel magnetotherapy

MAG-Expert

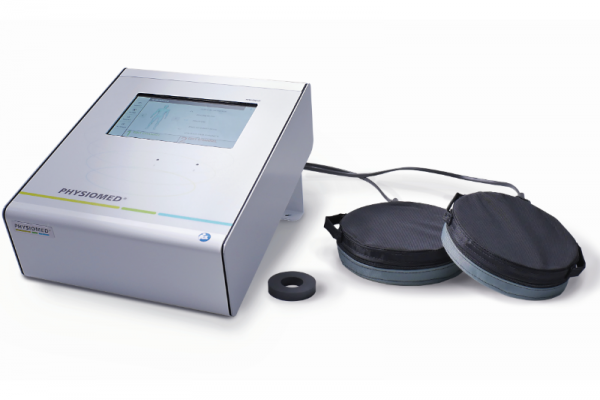

MAG-Expert provides magnetic field treatment with a field strength of 1–100 Gauss (adjustable in steps of one Gauss) and a frequency range from 1–100 Hz, with two completely independent channels and a treatment timer. Cylinders of different sizes as well as high performance applicators are available to maximise the efficiency of treatment.

MFC technology focuses the magnetic fields almost entirely on the inside of the cylinder. This avoids unnecessary exposure of the treatment team.

SPECIAL FEATURES

  • Magnetotherapy from 1-100 Gauss
  • Therapy frequency from 1-100 Hz
  • Two independent channels
  • MFC technology for focussing magnetic fields
  • Extremely stable treatment couch with pillow and hydraulic system for opening and easy installation of the coil
  • Precisely manufactered sliding for easy and comfortable positioning of the coil

Please share this content...

Ask us about MAG-Expert

GENERAL FEATURES

  • 1 Intuitive PHYSIOMED one-button operation
  • Comprehensive overview of the therapy parameters
  • Fastest therapy start: direct, through program memory or indications index
  • Extensive treatment index with dosage proposals
  • MAG-Expert is available in the following configurations:
  •  Green cylinder, Ø 60 cm and therapy couch for magnetic field therapy of the spine, pelvis and the whole body
  • 3 Green cylinder, Ø 30 cm for magnetic field therapy of the limbs and head

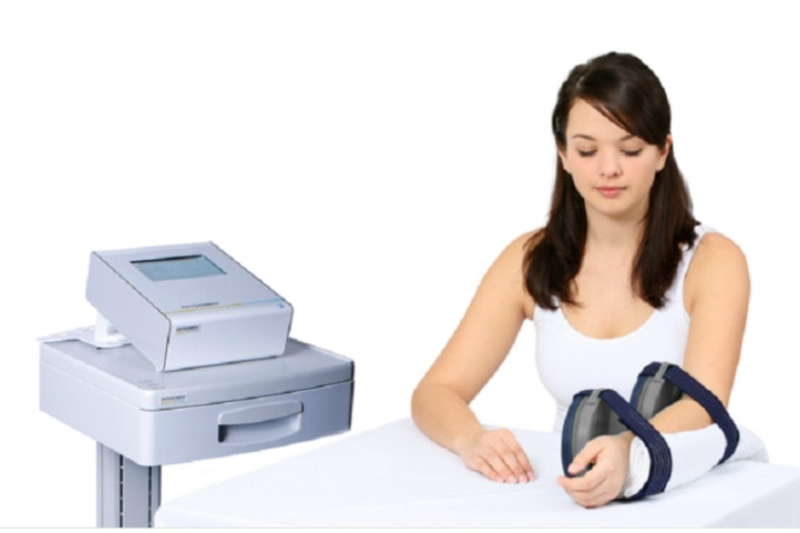

  •  Applicator set available for local treatment




TECHNICAL DATA
  • Protection class: 1, type BF
  • Power connection: 230 V ±10 % or 115 V ±10 %
  • Mains frequency: 50 – 60 Hz
  • Current consumption: 1 A (at 230 V) or 2 A
  • Power consumption: 400VA
  • Therapy frequency: 1-100 Hz
  • Power output: 1-100 Gauss (adjustable in steps of 1 Gauss)
  • Dimensions (W x H x D): 345 x 133 x 348 mm
  • Weight: 3.8 kg
  • Therapy couch:
  • Dimensions (W x H x D): 630 x680 x 2020 mm
  • Weight: 63 kg
STANDARD ACCESSORIES

[1] Connection cable
[1] Mains cable
[1] Operating instruction
[1] Test metal ring
