DEEP OSCILLATION® Evident
Two-channel deep oscillation unit for professional use
DEEP OSCILLATION® Evident allows you to begin treatment with maximum speed and ease: direct selection of deep oscillation parameters, over the indication index or program memory. During treatment you have a constant overview of all values and timers. With decades of proven use, the PHYSIOMED one-button operation allows fast intuitive operation in combination with the touch screen.
Deep oscillation characteristics can be adjusted precisely to the desired treatment over the individual setting of frequency (or frequency band), duty cycle, burst function and therapy duration. The extensive indication list with practical information, graphics, animations and patient database with ‘potpourri‘ function additionally ease use.
Up to three indication menus can be selected for DEEP OSCILLATION® Evident:
» CLINICS (for use in clinics, hospitals and physiotherapy practices)
» SPORTS (for use in sport medicine centres and clinics)
» AESTHETICS (for use in aesthetic medicine)
SPECIAL FEATURES
DEEP OSCILLATION®
- Two-channel deep oscillation
- Frequeny range from 5-250 Hz
- Individual setting of frequency, frequency bands, duty cycle, duration of therapy and burst function
- Contact elements made from biocompatible titanium
- 1 Special hand applicators in two sizes for all-over and local treatment
- Easily interchangeable treatment membranes guarantee a hygienic application
- 2 Individual programmes as well as suggested treatments from the indication index can be easily stored on the DEEP OSCILLATION® therapy card and used with DEEP OSCILLATION® Personal
Ask us about DEEP OSCILLATION® Evident
GENERAL FEATURES
- 3 Perfected user guidance through combination of touch screen and PHYSIOMED one-button operation
- 8“ colour monitor
- 4 Swivel and tilt mount for optimum monitor alignment at all times
- Comprehensive overview of the therapy parameters including all therapy timers
- Fastest therapy start: direct, through program memory or indications index
- Treatment index with intelligent filtering functions based on body region or per alphabet for quick loca- tion of the desired treatment proposal

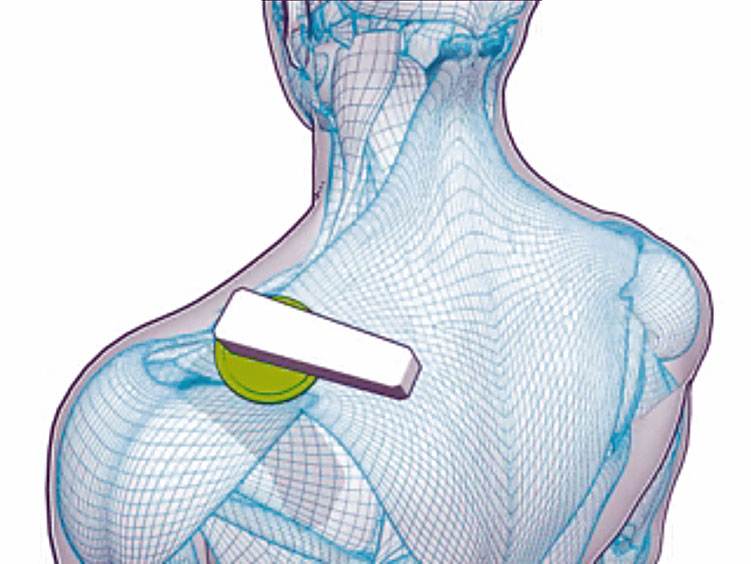

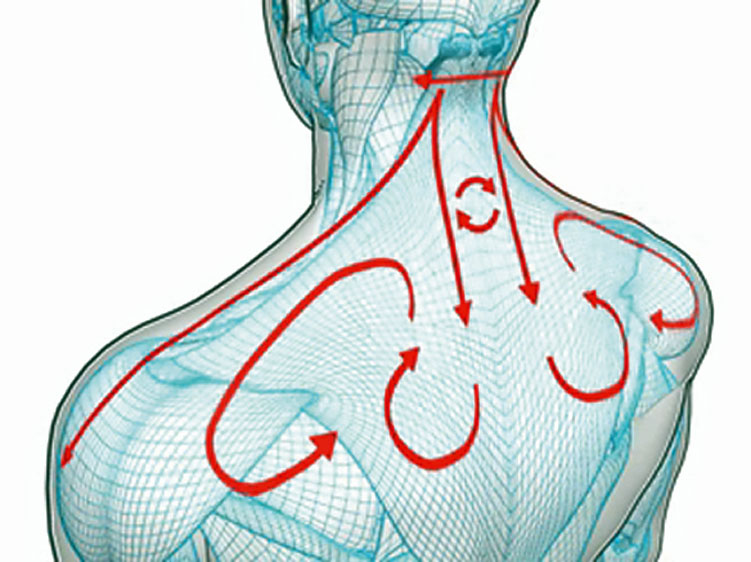

- 5 and 6 Extensive therapy and dosage suggestions and detailed animations illustrating treatment, which can be viewed during therapy at the touch of a button
- Patient database for max. 100 entries: up to 5 treatment levels can be saved and configured as potpourris per patient
- Multifunctional intensity controls with emergency stop function and quick switching between channels

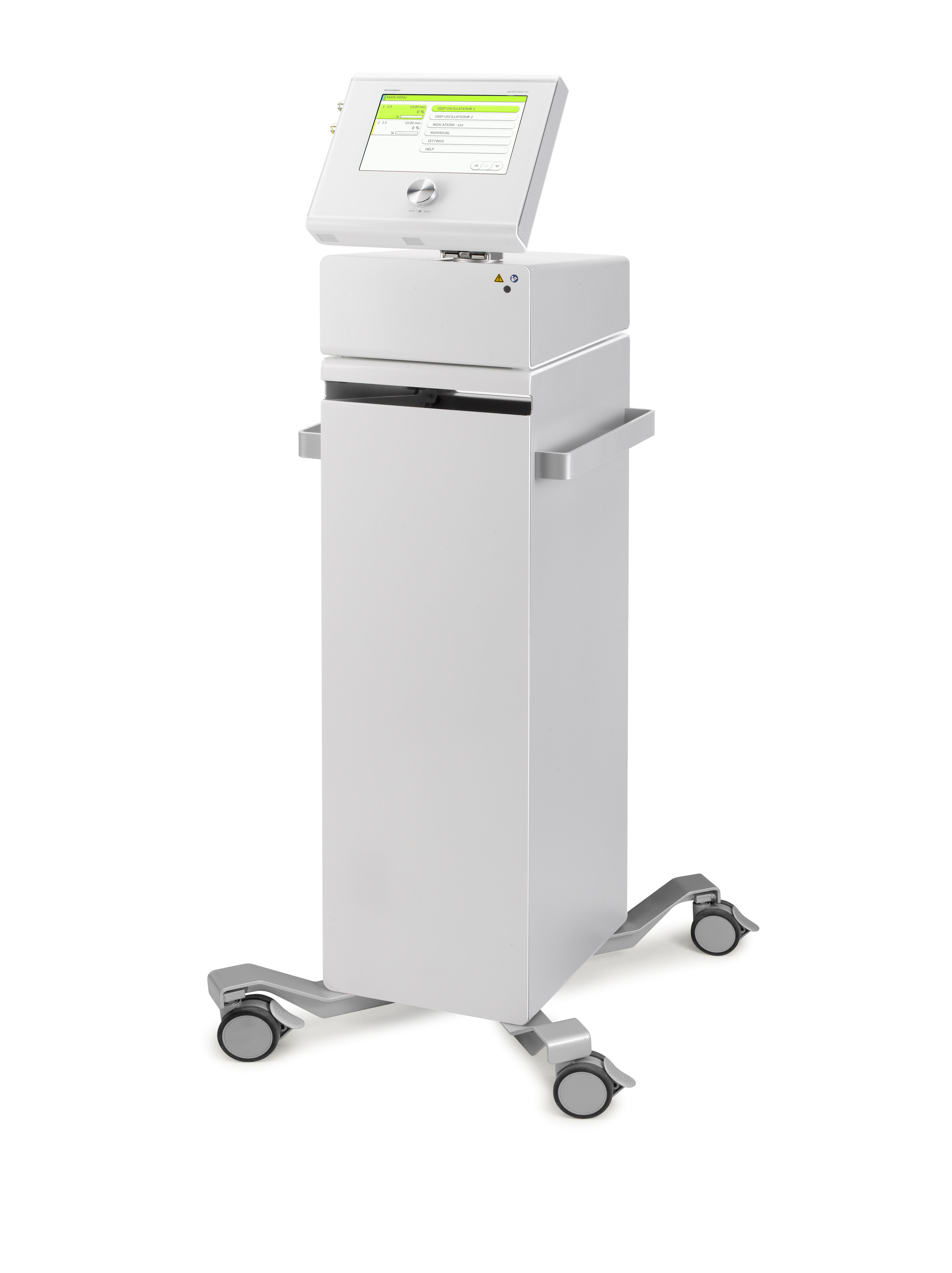

- 7 The Trolley is a standard accessory with the DEEP OSCILLATION Evident
TECHNICAL DATA
- Protection class: 1, type BF Power connection: 100 - 240 VAC ± 10 %
- Mains frequency: 50 / 60 Hz
- Current consumption: 0.1 A (at 230 V) or 0.2 A (at 115 V)
- Power consumption: 20-30 VA
- Output voltage max: 400 V
- Load impedance: 10 M?
- Output frequency: 5 – 250 Hz
- Dimensions (W x H x D): 260 x 350 x 370 mm (monitor unfolded)
- Weight: 6.2 kg
STANDARD ACCESSORIES
- [2] Applicator handholds
- [4] Connection cables DEEP OSCILLATION®
- [1] Connection cable grey for adhesive electrodes
- [1] Mains cable
- [1] Operating instructions
- [2] Oscillator heads Ø 5 cm
- [2] Oscillator heads Ø 9.5 cm
- [2] Patient leads DEEP OSCILLATION®
- [1] PHYSIOPADS adhesive electrode for DEEP OSCILLATION® (set of 4)
- [1] Powder
- [1] Special gloves size M (100 pcs.)
- [3] Therapy cards DEEP OSCILLATION®
- [2] Titanium neutral elements
- [1] Trolley Evident
-
ADDITIONAL ACCESSORIES
- (1) Accessory Tray Evident
- (1) Monouse adhesive electrode x 60
- (1) Oscillator head 1.5cm
- (1) Pin applicator - enables treatment in small areas
- (1) Additional software packages are available in clinics, sports and aesthetic depending on which device has been chosen
- (1) Gloves in sizes from small to extra large - boxed in 100 pairs or cases of 10 boxes
- (1) Spiral lead universal - connection cable between deep oscillation and applicator handhold or titanium neutral element
- (1) Sweatband
- (1) Upgrade package for Evident: 2 Personal units, 6 programmable therapy cards
