Cold air therapy has an extremely wide range of applications. It is ideal for treating, among other things:

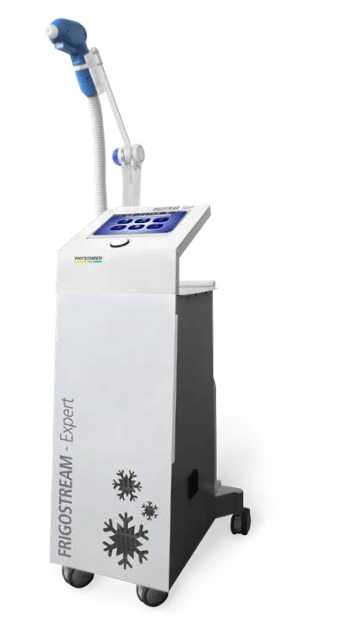

FRIGOSTREAM-Expert
Automated, sustainable and safe cryotherapy in a minimum of space
FRIGOSTREAM-Expert stands for proven cold therapy applied directly and locally to the patient’s muscle tissue to be treated. The healing and palliative effect of the cold therapy can be ascribed primarily to the thermal and neurophysiological stimuli on the musculature and on the nervous- and vascular system.
In feedback mode the skin surface temperature to be attained can be selected between 12 °C and 26 °C. FRIGOSTREAM-Expert extracts the air from the environ- ment and cools it down to –35 °C and reaches up to 1500 l/min. The cooled air stream is fed via a flexible hose and nozzle directly to the appropriate place on the body, without skin contact being required.
- Operating mode: constant skin surface temperature via infra-red sensor
- Real-time temperature feedback
- Supporting arm for safe and time-saving hands-free therapy
- Environmentally-friendly cooling agent
- Flexible hose is cold-insulated and fitted with an ergonomic light handle.
- Handle with 360° rotating coupling on hose. This means no turning pressure on the hose. Safe and pleasant working all day.
- Bursopathy
- Tendopathy
- Pain, musculoskeletal
- Soft tissue injury
SPECIAL FEATURES
- Treatment time from 30 secs to 30 mins.
- Air stream: 10% to 100%, in 10 increments
- Air temperature: –35 °C to +11 °C, in 1°C increments
- Desired skin temperature: 12 °C to 26 °C, in 1°C increments
- Hands-free operation via biofeedback sensor
- Ready for use within a few minutes
- 1 Nozzle in three sizes (5mm, 10mm, 15mm) for effective treatment (optional)
- 2 Holding arm for hands-free treatment (optional)
- 3 Handle with 360° rotating coupling on hose. This means no turning pressure on the hose.
- 4 + 5 Hands-free operation via biofeedback sensor
Ask us about FRIGOSTREAM-Expert
GENERAL FEATURES
- Specially designed arm for contactless application without therapist
- Intuitive user interface
- 12.1 inch color touchscreen display
- Hidden water tank with level measurement
- Large wheels for mobility and stability
- USB ports for technical support, software updates and backup
- 360 degree swiveling handpiece without external cable
- Hands-free operation using biofeedback sensor
TECHNICAL DATA
FRIGOSTREAM Expert
- Temperature: –35 °C air stream
- Air stream: up to 1,500 litres/min. adjustable in 10 increments
- Operating modes: Air - and surface temperature controlled
- Temperature sensor: IR type
- Refrigerant: R404A
- Preset programmes: Yes
- Individual programmes: Yes
- Warning messages: for water, filter system, cleaning and de-icing
- Operation: 12.1 inch color touch TFT
- Dimensions: (W x H x D) 500 x 1027 x 460 mm
- Weight (unit, screen and trolley): 65 kg
- Power consumption: 920 VA
- Voltage: 230 V~ / 50 Hz
- Fuses: 2 x T6,3L250
- IEC 60601-1 power switch: Yes
STANDARD ACCESSORIES
- [1] Handpiece
- [1] Power cable
- ADDITIONAL ACCESSORIES

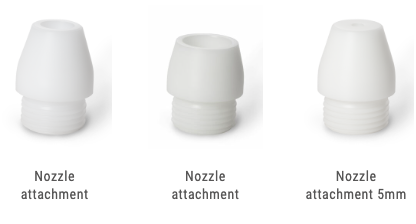

- [1] Nozzle attachment 5mm
- [1] Nozzle attachment 10mm
- [1] Nozzle attachment 15mm
