IONOSON-Expert (3rd edition)

Professional electro-, ultrasound, simultaneous therapy for hospitals, rehab and physiotherapy centres with option to add vacuum therapy

Highlight features

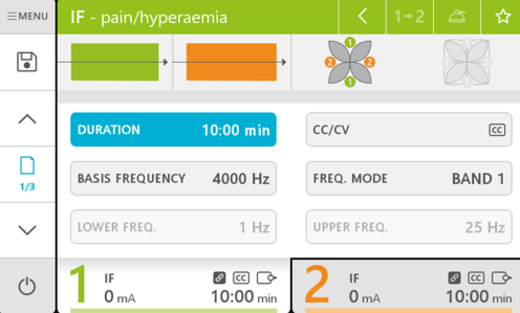

• 1 New user interface for super-fast and clear working

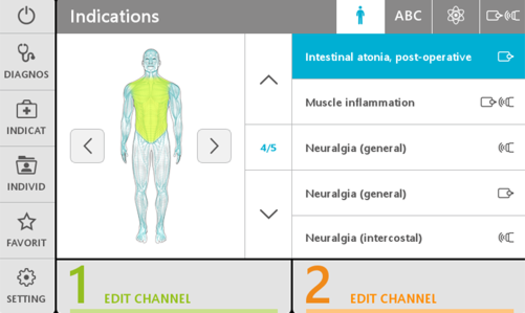

• 2 Treatment index with filtering functions based on body region, therapy form, desired therapy effect or per alphabet for quick location of the desired treatment proposal

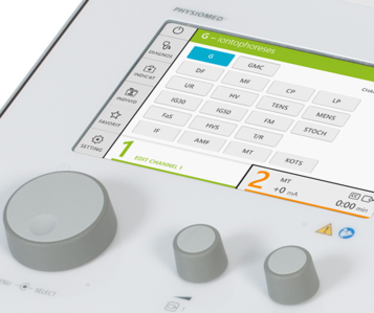

• 3 User guidance and overview: Perfected user guidance through combination of 7" touch screen and PHYSIOMED one-button operation for comprehensive overview of the therapy parameters including all therapy timers; multifunctional intensity controls allowing for fast intensity reduction and quick switching between channels

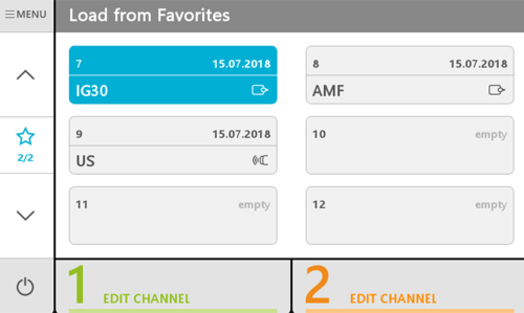

• 4 Favourites menu enables impressively simple saving and calling up of the most popular applications - only two clicks to the therapy!

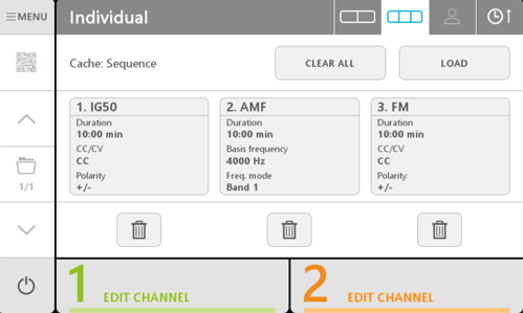

• 5 Memory menu: Easy-to-use and extensive memory menu with cocktail function

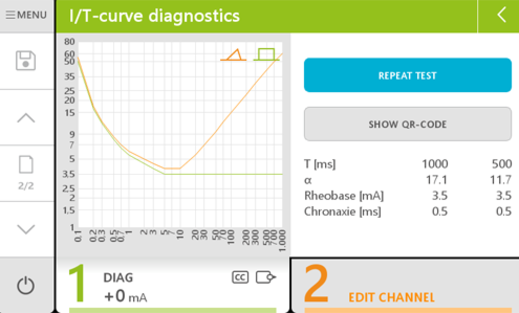

• 6 I/T curve with graphical visualization of the curve profile
• 7 Colour coding: Logical colour coding of electrotherapy and vacuum application accessories for quick and accurate allocation of channels and polarity
• Warnings in case of intensity exceeding

Therapy option spasticity treatment

The fundamental principle of special electrotherapy methods e.g. for spastic cerebral palsy, spasms following apoplectic insult and adductor spasms is the stimulation of the Golgi tendon organs, which in turn is aimed at inhibiting muscle spasticity at bone marrow level. Directly following inhibition of the affected muscle, in the second circuit the antagonistic muscles are stimulated.

Dr. Felipe Medina presents an example of the adjuvant therapy option in a video.

Product Combination

PHYSIOVAC Expert (3rd edition)
Simple and easy vacuum application with the Expert-Line 3rd edition

SPECIAL FEATURES

ELECTROTHERAPY

• Two-channel electrotherapy (21 currents) with basic settings on top level and detailed parameter settings in the expert menu (with visualization of the current shape parameters)
• 6 diagnostic menus (incl. quick I/T curve representation): the user-guided navigation makes the diagnostic evaluation self explanatory and effective
• Alternating and simultaneous stimulation
• Spasticity treatment acc. to Hufschmidt or Jantsch
• Manual release key for emergency shut-off or intentional exercises
• Warning in case of intensity exceeding

ULTRASOUND THERAPY

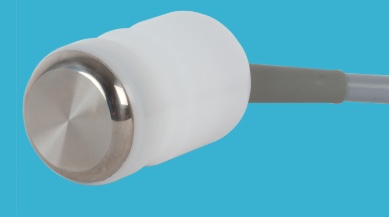

• The ergonomic ultrasound transducers offer maximum safety and reliability in terms of power output. They combine 1 and 3 MHz ultrasound in an extremely durable and biocompatible titanium transducer, thereby excluding metallurgical deposits and are also suitable for subaqueous treatment.
• Continuous or pulsed energy output (4 duty cycles [1:10, 1:5, 1:3, 2:5])
•

A WORD ON CLEAN CURRENTS..

Quite a few electrotherapy instruments today no longer emit stimulation currents in the form described in teaching manuals, and on which efficient electrotherapy is proven to be based. Instead of this – and in many cases due to cost savings – similar, but not identical, curve forms are used. Nobody knows exactly whether these cause the desired effects in tissue in the same way as the original currents. Instead of medium frequency currents, for example, low frequency ones are generated, and vice versa. In a direct comparison, the difference between ”genuine“ and ”similar“ currents can often be felt, but it only becomes visible when the current curves are viewed on an oscilloscope. Galvanic currents with spikes can be found, distorted instead of harmonic sinusoidal curves, or even deformed envelopes of diadynamic currents.

PHYSIOMED distances itself firmly from this trend of compromising therapeutic success only for the sake of maximising profits. PHYSIOMED instruments therefore only supply ‘clean’ currents. This also explains the often heard opinion of competent electrotherapy users, that despite using the same parameters, they obtain better therapeutic results with PHYSIOMED instruments than with other stimulation current instruments.

Click to view indications and detailed therapy information

TECHNICAL DATA

• Two-channel electrotherapy including 21 currents
• Alternating and simultaneous stimulation
• Spasticity treatment acc. to Hufschmidt or Jantsch
• Manual release key for emergency shut-off or intentional exercises (option)
• Warning in case of intensity exceeding
• Simultaneous therapy
• Vacuum application with PHYSIOVAC-Expert (option)

Low frequency currents:

• G (Galvanisation)
• GMC (Galvanisation with microcurrent)
• DF (Diadynamic current diphasé fixe)
• MF (Diadynamic current monophasé fixe)
• CP (Diadynamic current modulé en courtes périodes)
• LP (Diadynamic current modulé en longues périodes)
• UR (Ultra stimulation current acc. to Träbert)
• HV (High voltage current)
• TENS (Transcutaneous electric nerve stimulation)
• MENS (Electric nerve stimulation with microcurrent)
• IG 30 (Pulse galvanization 30)
• IG 50 (Pulse galvanization 50)
• FM (Frequency-modulated current)
• STOCH (Stochastic current)
• FaS (Faradic surge current)
• HVS (Current mode with high voltage stimulation characteristics)
• T/R (Pulses with adjustable parameters)

Medium frequency currents:

• IF (Classic interference current)
• AMF (Bipolar interference current)
• MT (Medium-frequency muscle stimulation)
• KOTS (Russian stimulation)

Diagnostics

• Faradic excitability test
• Medium-frequency test (Lange)
• Accommodation quotient
• Rheobase/chronaxy
• I/T curve (with graphical visualization of the curve profile)
• I/T curve - quick test

STANDARD ACCESSORIES

• Contact gel, 250 ml Order number 00183 Quantity [1]
• Elastic velcro strap 10 x 125 cm Order number 00453 Quantity [1]
• Elastic velcro strap 6 x 80 cm Order number 0045 Quantity [1]
• Mains cable Order number 00776 Quantity [1]
• Operating instructions 00600 Order number Quantity[1]
• Patient lead Order number 02561 Quantity[1]
• Plate electrode EF 50 with cable, set of 4 (I/II) Order number 02520 Quantity [1]
• Short introduction to electrotherapy Order number 00601 Quantity [1]
• Short introduction to ultrasound therapy Order number 00602 Quantity [1]
• Transducer 1/3 MHz 5 cm2 Order number 55741 Quantity [1]
• Viscose cover EF 50 Order number 00435 [4]

Additionally for IONOSON-Expert (3rd Edition)

• Connection cable for PHYSIOPADS adhesive electrodes Blue/Green Order number 02502
• Connection cable for PHYSIOPADS adhesive electrodes Blue/Orange Order number 02504
• Connection cable for PHYSIOPADS adhesive electrodes Red/Green Order number 02501
• Connection cable for PHYSIOPADS adhesive electrodes Red/Orange Order number 02503
• Connection cable for PHYSIOPADS adhesive electrodes, set of 4 (I/II)Order number 02500
• Contact gel, 1000 ml Order number 00180
• Contact gel, 5000 ml Order number 00182
• Elastic rubber strap Order number 00141
• Electrode test pen Order number 00412
• Fastening button Order number 00142
• Filling pump Order number 00184
• Glove electrode (pair) Order number 00413
• Hand grip for punctiform electrodes Order number 02567
• Iontophoresis foil Order number 00136
• Manual release key Order number 02560
• PHYSIOPADS adhesive electrode 13 x 8 cm, set of 2, Order number 00585
• PHYSIOPADS adhesive electrode 5 x 5 cm, set of 4, Order number 00587
• PHYSIOPADS adhesive electrode 9 x 5 cm, set of 4, Order number 00588
• PHYSIOPADS adhesive electrode Ø 3,2 cm, set of 4., Order number 00586
• Plate electrode EF 10 with cable , set of 4 (I/II), Order number 02510
• Plate electrode EF 10 with cable, blue/green Order number 02512
• Plate electrode EF 10 with cable, blue/orange Order number02514
• Plate electrode EF 10 with cable, red/green Order number 02511
• Plate electrode EF 10 with cable, red/orange Order number 02513
• Plate electrode EF 100 with cable, blue/green Order number 02532
• Plate electrode EF 100 with cable, blue/orange Order number 02534
• Plate electrode EF 100 with cable, red/green Order number 02531
• Plate electrode EF 100 with cable, red/orange Order number 02533
• Plate electrode EF 100 with cable, set of 4 (I/II), Order number 02530
• Plate electrode EF 200 with cable, blue/green Order number 02542
• Plate electrode EF 200 with cable, blue/orange Order number 02544
• Plate electrode EF 200 with cable, red/green Order number 02541
• Plate electrode EF 200 with cable, red/orange Order number 02543
• Plate electrode EF 200 with cable, set of 4 (I/II) Order number 02540
• Plate electrode EF 50 with cable, blue/green Order number 02522
• Plate electrode EF 50 with cable, blue/orange Order number 02524
• Plate electrode EF 50 with cable, red/green Order number 02521
• Plate electrode EF 50 with cable, red/orange Order number 02523
• Punctiform electrode attachment 0,8 cm Order number 02566
• Punctiform electrode attachment 1,5 cm Order number 02565
• Punctiform electrode attachment 2,5 cm Order number 02564
• Punctiform electrode attachment 3,5 cm Order number 02563
• Rectal electrode Order number 02573
• Sponge layer for glove electrode Order number 00404
• Transducer 1/3 MHz 2.5 cm2 Order number 55742
• Trolley Expert Order number 55736
• Vaginal electrode Order number 02574
• Viscose cloth Order number 00149
• Viscose cover Order number 00160
• Viscose cover EF 10 Order number 00433
• Viscose cover EF 100 Order number 00437
• Viscose cover EF 200 Order number 00439
